Measured Building Surveys

Fully Controlled

All our measured building surveys are carried out on a fully controlled basis both inside and out. We use a variety of surveying equipment including laser scanners, drones and total station theodolites with taped measurements and field book sketches where required. The resulting floor plans show floor and ceiling levels, window sill and head heights, overhead structural beams etc with elevations all relating to a site datum. Digital photography is utilised for building elevations which, combined with photogrammetry software, can achieve a very high degree of detail if required. The information is presented as a .dwg CAD file with a carefully structured layering system that groups all the elements of the survey in a logical order making it easy for the end user to access and control the data when doing design work.

Photogrammetry ortho elevation in Plymouth, Devon
Photogrammetry ortho elevation
Floor plans in Devon and Cornwall

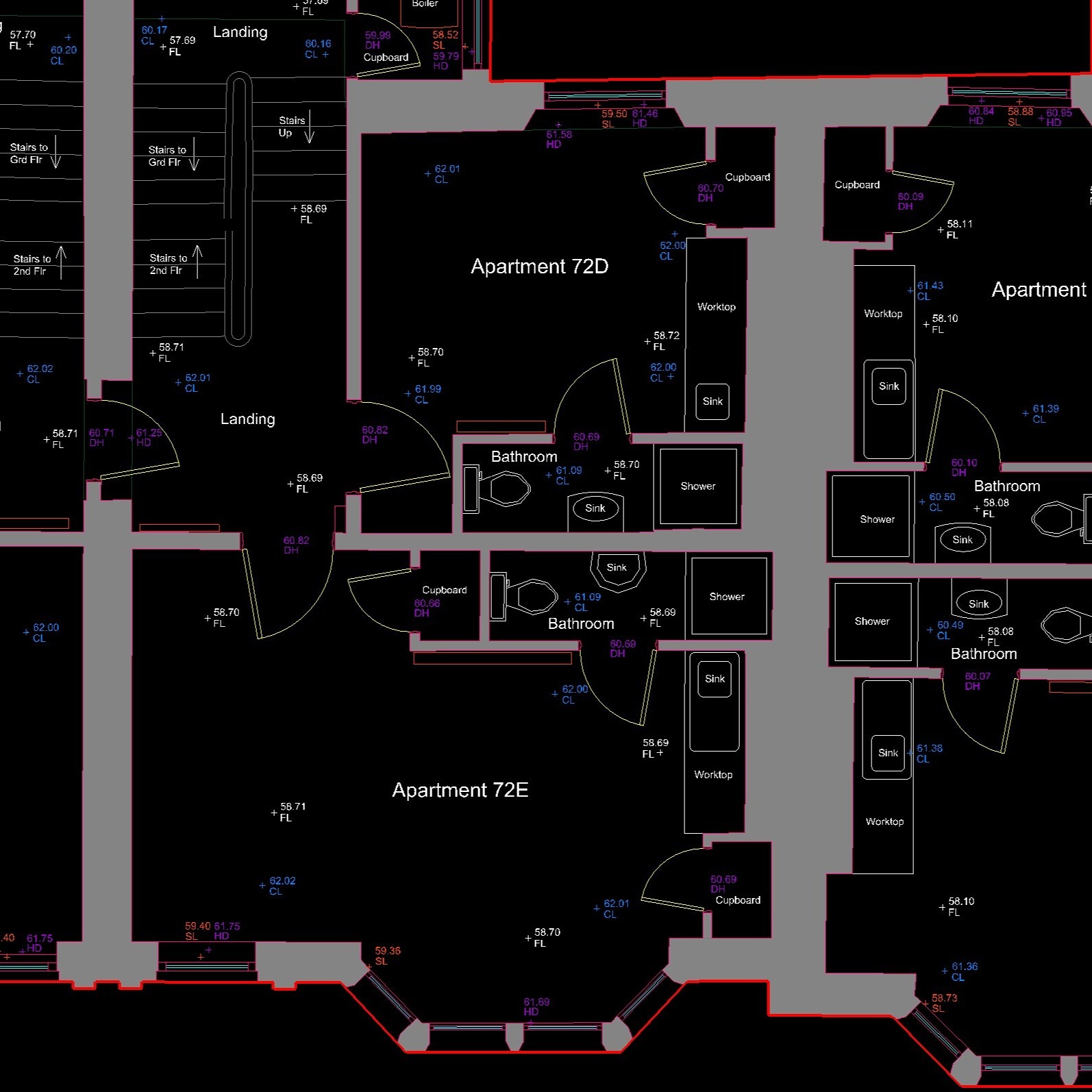

Floorplan for a HMO

Floor Plans and Elevations

Before undertaking a measured building survey the client is consulted to establish the final use of the survey and the required level of detail. This ensures that the survey is completed economically and that the client only pays for work that is required for their project.

Measured building surveys typically result in the production of floor plans and external elevations, but can also be used to produce cross sections, internal elevations, internal and external roof plans. A survey is an investment that will pay dividends in smoother workflows, less mistakes and give confidence that the design process will result in an easily managed project. Please click on the images below for an enlarged view.

We generally undertake this type of work in the Southwest of England, Cornwall, Devon, Somerset and Dorset but have undertaken surveys further afield in Bristol and South Wales.

Types of Building

We cover a wide range of different types of building and have successfully completed well over a thousand jobs to date that include the following:

  • Modern Bungalows

  • Offices

  • Mid terrace houses

  • Chalets

  • Estate Houses

  • Manor Houses

  • Farmhouses

  • Barns

  • Derelict buildings

  • Churches

  • Church Towers

  • Industrial and Commercial buildings

  • Factories

  • Cinemas

  • Listed buildings

  • Village Halls

  • Public Monuments

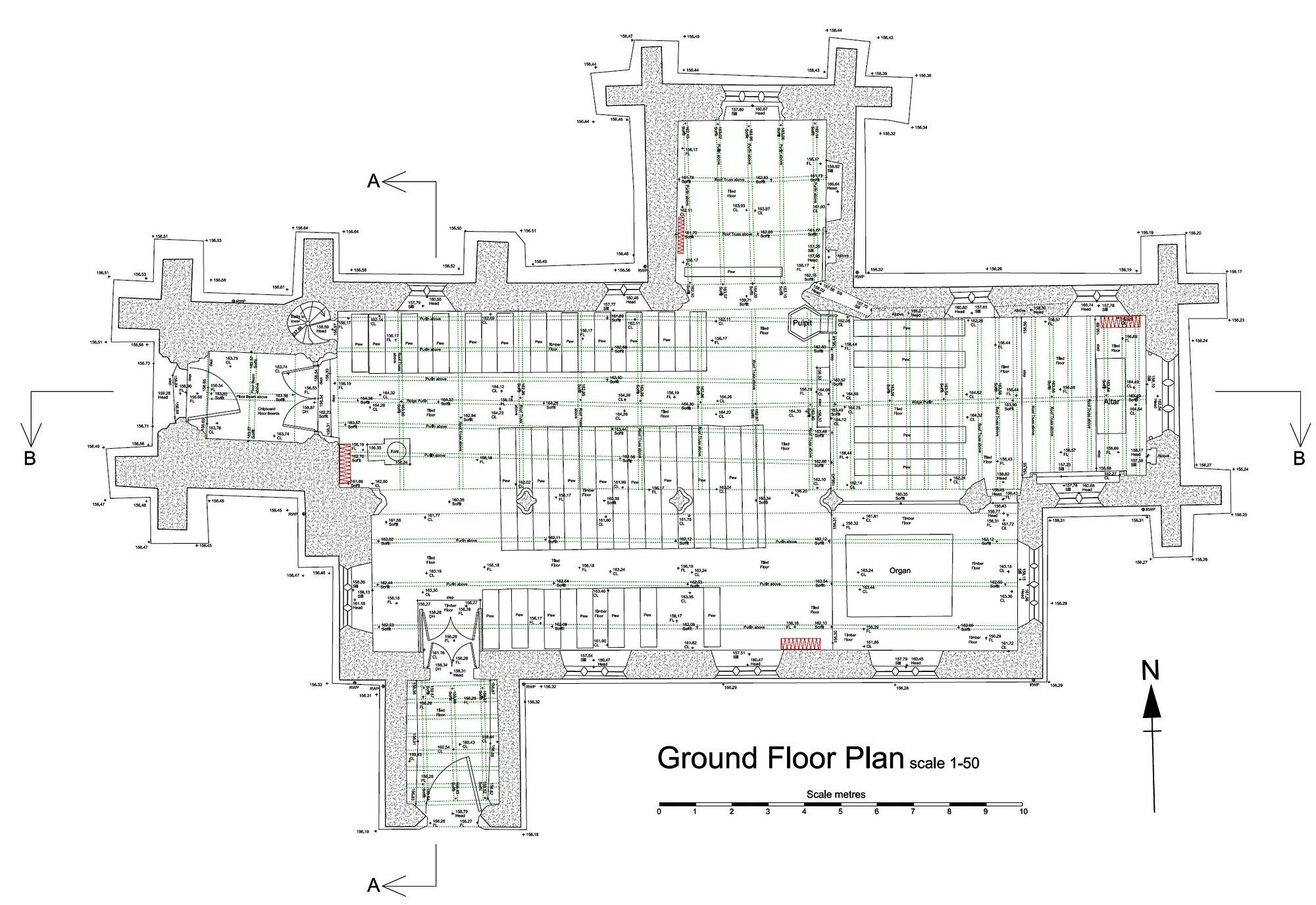

Measured building survey in Cornwall
Measured survey of an historic house in Cornwall
Measured building survey in Starcross, Devon

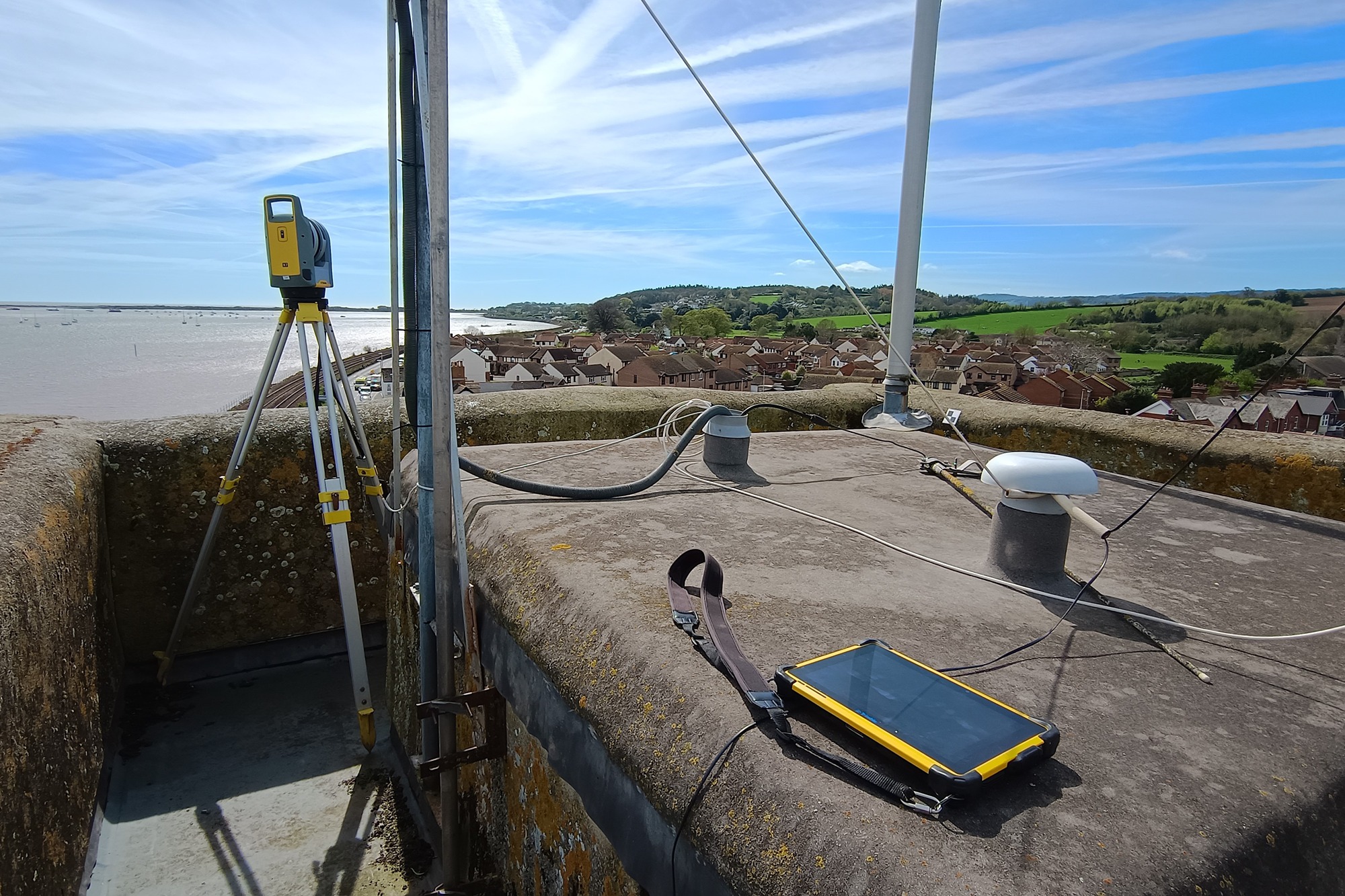

Laser Scanning at Starcross, Devon

Uses for a Measured Building Survey

  • Domestic house extensions

  • Building change of use design

  • Planning applications

  • Listed building consent

  • Structural alterations

  • Historic building conservation

  • Floor working space optimisation

Industrial Unit elevation, Plymouth Devon
Industrial unit elevation
